Configuring Proxy Server Connection

If you are using a proxy server to connect to the Internet, you must specify the proxy server settings for the following features to work correctly:

•	Check for updates

•	Announcements

•	License Activation



Complete the following steps to specify the proxy server settings:

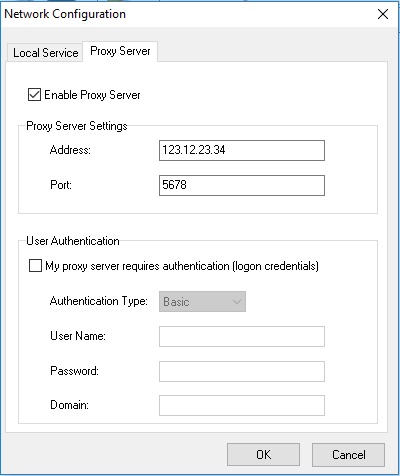

1.	Select Tools > Network Configuration.

2.	Go to the Proxy Server tab.

3.	Select the Enable Proxy Server checkbox to enable it.

4.	Specify the following proxy server settings:

>	Address – Specify the IP address of the proxy server.

>	Port – Specify the port number for the proxy server.

5.	This step is optional. Follow this step only if your proxy server requires authentication. Select My proxy server requires authorization (logon credentials) checkbox and specify the values for the following fields:

>	Authentication Type – Select the authentication type.

>	Username – Specify the username.

>	Password – Specify the password.

>	Domain – Specify the domain.

6.

Click OK.
