Example 2 – Multiple Subnets, One Local Service

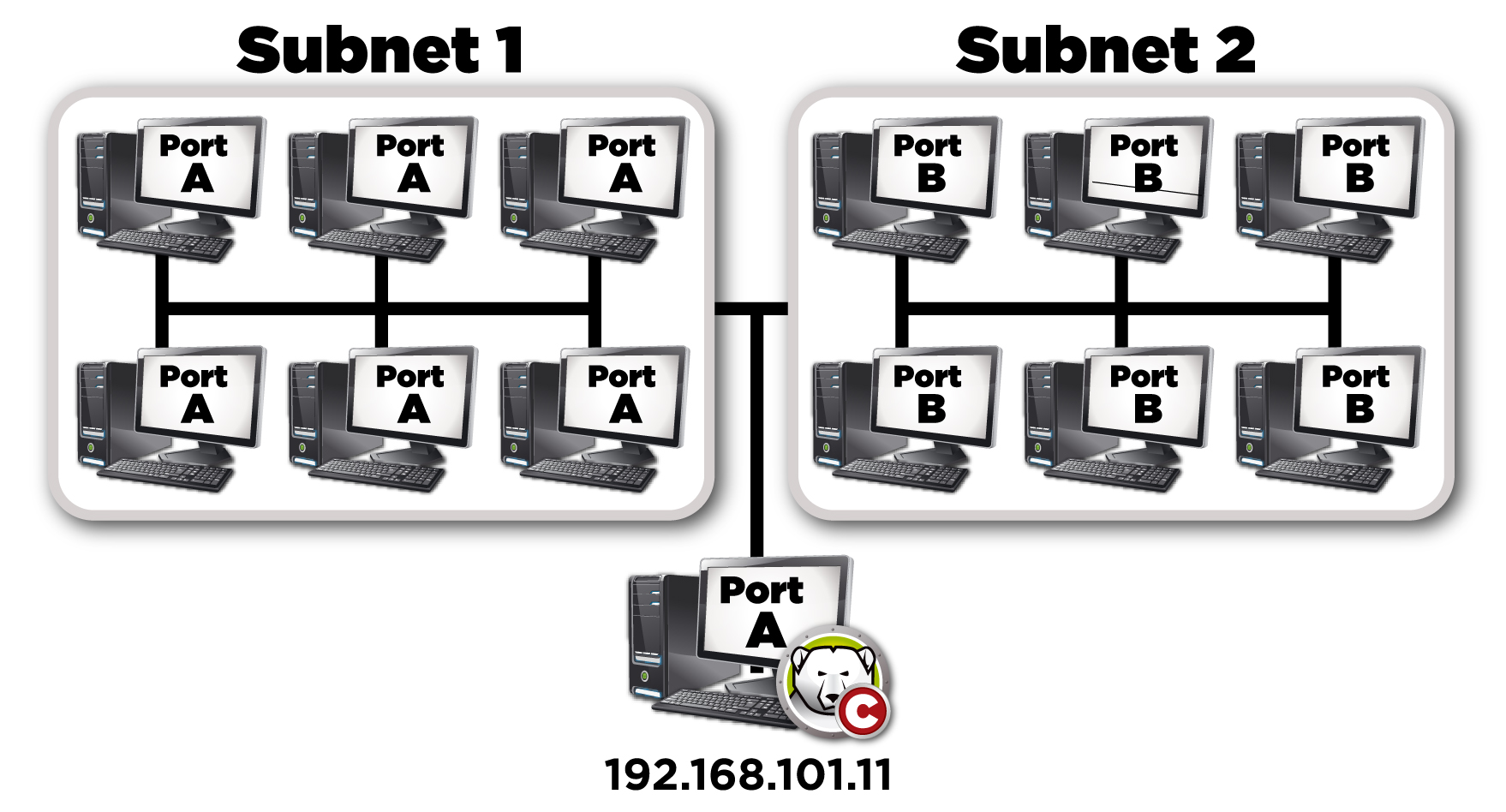

In this environment, the clients are located across more than one subnet. There is still only one Console being used. This environment does not require a Remote Console, although one could be used. The following diagram shows the network topology:

In this scenario (similar to Example 1 – Single Subnet) both the clients and the connection hosted by the Console are using the same port. This port is configured in the Deep Freeze Enterprise Configuration Administrator in the Advanced Options tab, before creating the Workstation Install file or Workstation Seed.

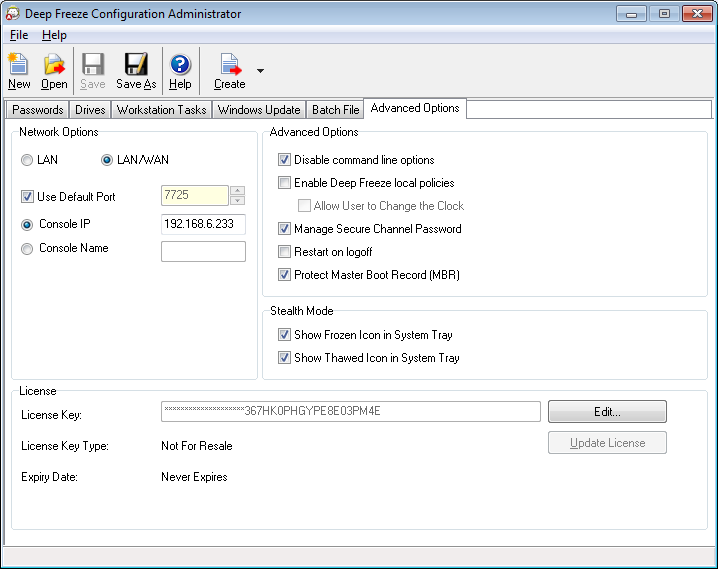

In order for the clients to be seen, they need to be configured to use a LAN/WAN connection. When the LAN/WAN option is selected, a Console IP field appears. Specify the IP of the machine that will run the Enterprise Console. An example of these settings are shown in the Advanced Options tab below:
