Toolbar and Menus

Toolbar

The Toolbar is available at the top of every tab in the Configuration Administrator.



Icon	Function
New	Blanks out all existing configuration settings. Opens with default configuration settings.
Open	Open any saved .rdx, Workstation Installation file or Workstation Seed file.
Save	Save a .rdx, Workstation Installation file or Workstation Seed file. File name and path is listed at the bottom of the Configuration Administrator in the status section.
Save As	Save the configuration settings as a .rdx file.
Help	Access the Deep Freeze Help file.
Create	Create Workstation Installation File creates a customized installer for installing on workstations. The workstations can then be managed from the Deep Freeze Enterprise Console. Create Workstation Seed File creates a seed that allows Deep Freeze Console to communicate with workstations across the network. Once the seed is installed on workstations, Deep Freeze Workstation Installation File can then be deployed remotely.

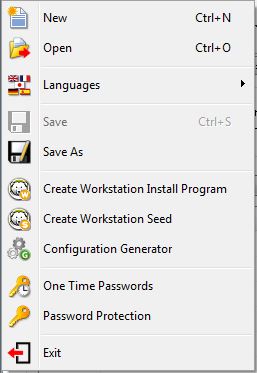

File Menu

The File menu contains the same options as those available on the Toolbar, with the additions of the option to choose from the available languages and Password Protection.

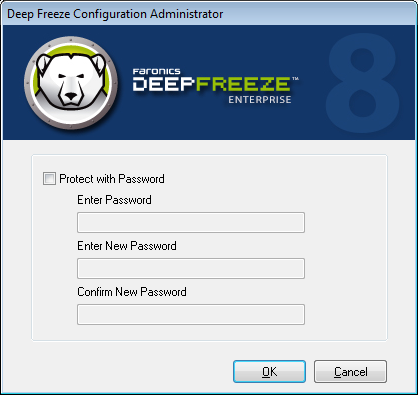

Password Protection

Password Protection offers an additional layer of security for the administrator.

To password protect access to the Configuration Administrator, complete the following steps:

1.	Open the File menu and select Password Protection.

2.	Select the Protect with password checkbox.

3.	Enter and confirm the password.

4.	Click OK to set the password or Cancel to exit the dialog without setting a password.

Store the password in a safe location. If the password is lost, you cannot recover it. You will have to reinstall Deep Freeze.
