Using Deep Freeze Enterprise Console : Managing Network and Groups : Adding a Group
Adding a Group
The Add Group dialog allows you to configure multiple filters to sort the workstations into different groups. This filter automatically updates the list of workstations based on the changes in the selected parameters.
Complete the following steps to add a group with a Filter:

1.
Right-click User Defined Groups in Network and Groups pane.
2.

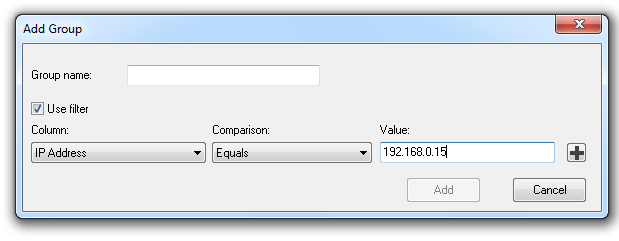

Select Add Group. The Add Group dialog is displayed:
3.
Specify the Group Name.
4.
Select Column.
5.
Select Comparison.
6.
Select Option And/Or if you are adding another filter.
7.
Specify Value or Regular Expression.
8.
Click Add.

The following table shows the Column, Comparison, Option, and Values.

Select Column
Select Comparison
Select Option
Specify Value or Regular Expression
Workstations
Equals
Not Equal To
Regular Expression

And
Or
Specify the Value or Regular Expression.
Workgroup
Equals
Not Equal To
Regular Expression
And
Or
Specify the Value or Regular Expression.
IP Address
Equals
Greater Than
Greater Than or Equal To
Less Than
Less Than or Equal To
Regular Expression
And
Or
Specify the Value or Regular Expression.
Status
Equals
Not Equal To
Regular Expression

And
Or

Frozen
Frozen and Locked
Thawed
Thawed and Locked
Applying Windows Update
Applying Batch File
Thawed Period
Maintenance Mode
License Expired
Workstation Seed
Unknown
Configuration
Equals
Not Equal To
Regular Expression

And
Or

Specify the Value or Regular Expression.
Configuration Date
Equals
Greater Than
Greater Than or Equal To
Less Than
Less Than or Equal To
Regular Expression
And
Or

Specify the Date.
Installation File
Equals
Not Equal To
Regular Expression
And
Or

Specify the Value or Regular Expression.
Version
Equals
Greater Than
Greater Than or Equal To
Less Than
Less Than or Equal To
Regular Expression
And
Or

Specify the Value or Regular Expression.

Operating System
Equals
Not Equal To
Regular Expression
And
Or

Specify the Value or Regular Expression.
MAC Address
Equals
Not Equal To
Regular Expression
And
Or

Specify the Value or Regular Expression.
Login Name
Equals
Not Equal To
Regular Expression
And
Or

Specify the Value or Regular Expression.
